Flat Metal Roof Leaking Problems Explained

Discover Solutions for Common Flat Roof Issues Affecting Central Coast Homes

While flat roofs may not currently dominate the roofing market in Australia, their demand is steadily increasing among both residential and commercial buildings. These roofing structures typically appear on patios, carports, walkways, and other areas that require low-pitch roofing. When the incline is slight, flat roofs are often referred to as “skillion roofs.”

Flat roofs provide numerous benefits but come with distinct challenges that homeowners need to be aware of. Recognising the common problems associated with flat roofing systems and adopting strategies to mitigate these issues is crucial, particularly on the Central Coast, where the coastal climate, significant rainfall, and salt-laden air can exacerbate roofing dilemmas.

What Influences the Growing Preference for Flat Roofs Among Homeowners?

Flat roofs are increasingly favoured in both residential and commercial constructions for various compelling reasons:

• They are quick and straightforward to install, leading to rapid project completion
• They provide easier maintenance access, simplifying routine inspections and repairs
• They serve as excellent platforms for solar panel installations, thereby enhancing energy efficiency

The primary concern with flat roofs revolves around managing water drainage. Water is the main adversary of your roof. When planning a new roof installation or renovating an existing one, it is essential to consider various factors, particularly rainfall, which can vary significantly across different regions of Australia.

What Are the Major Drainage Issues Associated with Flat Roofs?

Unlike pitched roofs that allow rainwater to flow off quickly into gutters, flat roofs feature a limited slope. This design can lead to water accumulation that persists for extended periods. If water is not effectively channelled off the roof, it may result in:

• Surface staining and degradation of roofing materials
• Structural weakening of roofing components over time
• Accumulation of mould and mildew, posing health risks
• Leaks that can infiltrate the interior of the building

The solution to these challenges lies in effective roof plumbing and thoughtful design that addresses the unique difficulties associated with flat roofs.

How to Enhance Flat Roof Designs for Optimal Drainage Efficiency

Before installation, a professional roofing contractor will evaluate several critical factors that influence drainage efficiency:

• Local rainfall intensity and prevalent weather patterns
• Overall roof area and precise dimensions
• Gutter configurations and effective drainage outlets
• Specifications for downpipes and their dimensions
• Overflow prevention options to manage excess water
• Considerations regarding roof pitch to improve drainage

Most roofing manufacturers recommend a minimum slope of 5° for low-pitch roofs. Roofs with a slope less than this can jeopardise waterproofing efforts and may even void product warranties, leading to potentially costly repairs.

Standard corrugated roofing sheets, while suitable for pitched roofs, do not perform well for very low-pitch applications. For flat roofs, it is advisable to use specific roofing profiles designed for efficient water shedding to guarantee long-term performance.

Examining the Most Effective Metal Roofing Profiles for Low-Pitch and Flat Roof Applications

Two of the highly recommended roofing profiles for low-pitch and flat roofs are:

Trimdek: This adaptable profile is suitable for both roofing and wall applications. With its 28mm rib height and specially designed capillary groove, it enhances water tightness, even at a minimal pitch of 2°.

Kliplok: This innovative clipped roofing profile employs hidden clips instead of screws to secure sheets. This design effectively prevents water ingress through screw penetrations, making it an exceptional choice for low-pitch installations.

Selecting the right roofing profile based on your roof pitch and local rainfall conditions is vital for ensuring the longevity and reliability of your roofing system.

How to Manage Box Gutters and Flat Roof Drainage Effectively

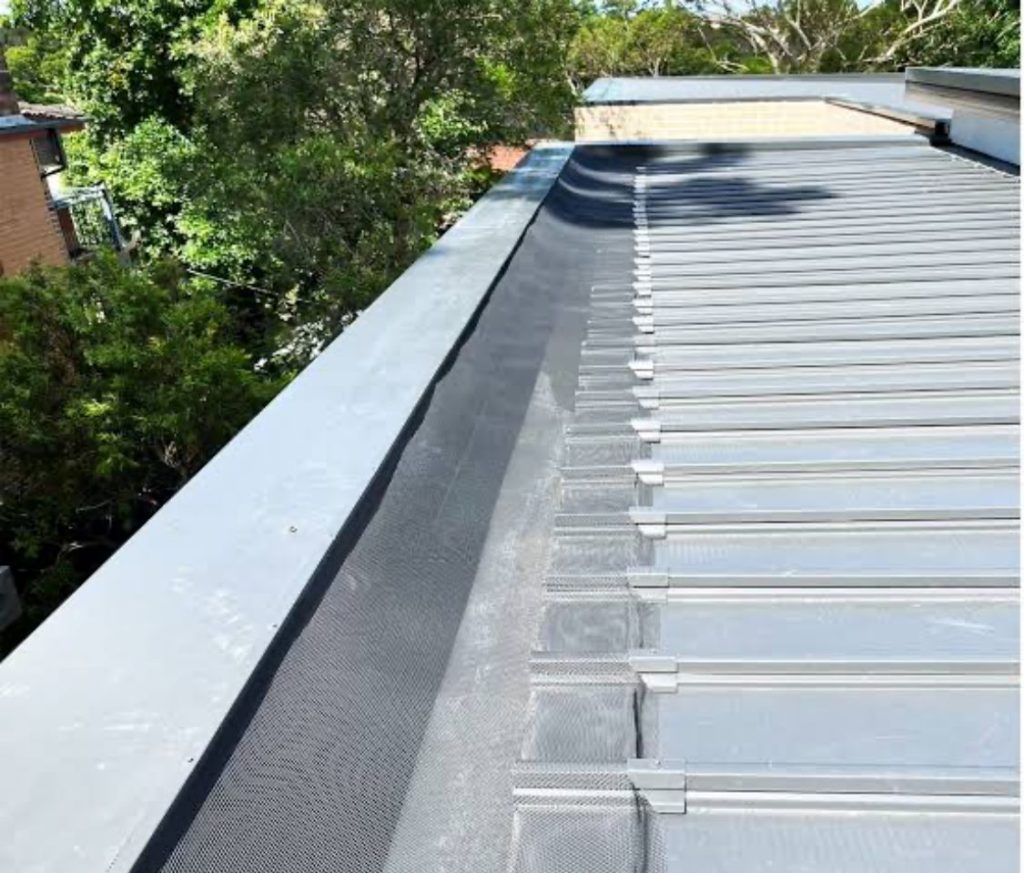

On flat roofs, box gutters are commonly used to connect roof panels to drainage outlets. As box gutters are situated below the roof plane, they require meticulous detailing and installation to prevent blockages and water back-up issues.

Common challenges related to box gutters include:

• Accumulation of debris from surrounding trees and foliage
• Improper slope or fall that obstructs water flow
• Overflowing back into the roof structure, leading to leaks
• Blocked downpipes that hinder effective drainage

Addressing these challenges begins with proper gutter design and a commitment to regular maintenance to guarantee optimal functionality.

What Should You Keep in Mind When Choosing Guttering for Your Flat Roof?

Standard gutters may not adequately handle the water flow demands of flat roofs. It is often necessary to install guttering specifically designed to accommodate larger water volumes. Next, we will explore various drainage and overflow options that can be integrated into your flat metal roof design.

• Facilitate quicker water removal during intense rainfall
• Effectively sweep debris away with high flow capabilities
• Provide easier cleaning and maintenance options for homeowners

Our top recommendation for gutters is self-cleaning designs, which are ideal for flat metal roofs while also offering an aesthetically pleasing appearance!

We recommend a half-round gutter due to its superior water-carrying capacity, enabling quicker drainage. This design effectively removes silt and sludge build-ups with each rainfall, ensuring a cleaner system over time.

For optimal performance on flat roofs, gutters should be adequately sized based on local rainfall patterns and connected to appropriately sized downpipes (for example, 100mm × 75mm) that can handle significant water volumes. In tree-dense areas, installing leaf diverters or guards can considerably reduce blockage issues.

How Flashings Are Essential for Preventing Water Entry at Roof Joints

Flashings are critical components installed at joints where roof sheets intersect with walls or other surfaces, including around skylights, chimneys, and at internal corners. On flat roofs, proper flashing installation is imperative, as water can accumulate around these joints if they are not effectively sealed.

To effectively prevent water ingress:

• Flashings must be meticulously shaped to conform to the roof profiles
• Waterproof sealants should be applied at all joints to ensure tight seals
• Extra attention is required at corners and seams where water may collect

By guaranteeing that flashings and sealants are installed correctly, you can achieve a watertight roof, even during heavy rainfall. Our team takes extra precautions during installation and uses high-quality waterproof sealant to prevent water from pooling in these vulnerable areas.

Why Is Routine Maintenance Essential for the Longevity of Flat Roofs?

Flat roof systems, particularly those associated with box gutters, require regular inspections and maintenance to ensure their effectiveness. This includes:

• Removing debris from gutters and box gutters to ensure clear drainage
• Inspecting downpipes for any signs of potential blockages
• Checking roof surfaces for small cracks or areas where water may pool
• Re-sealing flashings as needed to maintain waterproof integrity

Conducting consistent maintenance checks can prevent the need for more extensive repair work in the future, thereby extending the life of your roofing system.

Uncover the Advantages of Professionally Installed Flat Roofs

When designed and installed by experienced metal roofing professionals, flat roofs offer:

• A contemporary, sleek architectural aesthetic that enhances property value
• Optimised space for patios, decks, or utility services, maximising utility
• Convenient access for maintenance or solar panel installation, simplifying upkeep

Additionally, flat roofs can seamlessly integrate with existing pitched roof structures when drainage and detailing are managed correctly, enhancing both the functionality and appearance of the building.

How to Ensure You Receive Quality Flat Roof Installation on the Central Coast

A well-designed and expertly installed flat metal roof can provide both functionality and long-lasting durability in a coastal environment. Whether you are embarking on a new construction project, extending a patio, or adding a carport, selecting the right roofing system and drainage design is crucial for optimal performance and longevity.

Contact AWS Roofing today to request a quote and secure your installation date. With another wet summer approaching, now is the ideal time to address any roofing concerns and prevent more significant issues in the future.

Flat Roof Frequently Asked Questions: Do Flat Roofs Encounter More Problems Compared to Pitched Roofs?

Flat roofs can indeed face more drainage challenges if not designed adequately. Without sufficient slope, water may pond or leak into the building structure. However, when constructed with the correct pitch, roofing profile, box gutter design, and flashing techniques, flat roofs can be just as resilient as pitched roofs.

What is the Optimal Roof Pitch for a Flat or Low-Slope Roof?

Most roofing manufacturers recommend a minimum pitch of 5 degrees for metal flat roofs. Profiles like Trimdek and Kliplok can function effectively at pitches as low as 2 degrees when installed correctly and properly sealed against water. Anything below 5 degrees necessitates careful selection of materials and detailed guttering strategies to ensure adequate drainage.

Is it Possible to Install Solar Panels on a Flat Metal Roof?

Absolutely, flat metal roofs are ideal for solar panel installations. The accessible surface simplifies the installation process and enhances safety. Typically, panels are tilted on angled mounts to optimise sun exposure and prevent water from pooling underneath, ensuring maximum efficiency in energy production.

What Exactly Are Box Gutters and Why Are They Utilised on Flat Roofs?

Box gutters are internal roof gutters located below the roof line, often found between roof sections or along parapet walls. They are commonly employed on flat roofs to manage runoff effectively, but they must be carefully sized and sloped to avoid blockages and overflow problems that could compromise the roof's integrity.

Do Flat Roofs Need Special Gutters or Downpipes?

Yes, flat roofs generally require higher-capacity gutters and larger downpipes to facilitate effective water drainage. Half-round gutters and 100x75mm downpipes are frequently used to enhance flow and prevent water accumulation. Additionally, overflow devices and leaf diverters may be beneficial in reducing maintenance needs.

What is the Lifespan of a Flat Metal Roof?

When installed correctly, equipped with proper drainage, and maintained regularly, a flat Colorbond or Zincalume metal roof can last anywhere from 20 to 30 years or even longer. Keeping box gutters clear and resealing flashings as necessary will significantly extend the roof's lifespan and performance.
